GUTEKUNST成立于1964年，作为高品质弹簧和圆线弯线零件制造商。GUTEKUNST拥有多年的经验、合格的员工以及自己开发的软件程序和选择介质，在合适的弹簧或所需的弯丝零件的整个开发、设计和选择过程中提供支持。
|
|
|

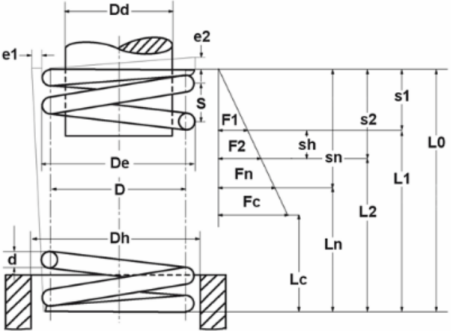

Technical Data
|
|
Formula symbols
|
Value
|
Unit
|
Description
|
|
Material
|
EN 10270-3-1.4310
|
-
|
Type of material .
|
|
Spring ends
|
Closed and ground
|
-
|
Spring ends
|
|
F1
|
-
|
N
|
prestressed spring force
|
|
L1
|
-
|
mm
|
Prestressed spring length
|
|
s1
|
-
|
mm
|
Prestressed spring deflection
|
|
F2
|
-
|
N
|
Loaded spring force
|
|
L2
|
-
|
mm
|
Loaded spring length
|
|
s2
|
-
|
mm
|
Loaded spring deflection
|
|
d
|
10
|
mm
|
Wire diameter
|
|
Di
|
-
|
mm
|
Inner coil diameter
|
|
D
|
63
|
mm
|
Mean coil diameter
|
|
De
|
73
|
mm
|
Outer coil diameter
|
|
Dd
|
51
|
mm
|
maximum diameter of mandrel
|
|
Dh
|
75
|
mm
|
minimum diameter of bush
|
|
L0
|
96
|
mm
|
unstressed spring length
|
|
Lk
|
|
mm
|
buckling length
|
|
Fn
|
3540.962
|
N
|
maximum force in static use
|
|
Ln
|
64.3
|
mm
|
Minimum length in static use
|
|
sn
|
35.42
|
mm
|
Maximum spring deflection in static use
|
|
Fndyn
|
3169.404
|
N
|
maximum force in dynamic use
|
|
Lndyn
|
64.3
|
mm
|
Minimum length in dynamic use
|
|
shdyn
|
3.8
|
mm
|
Maximum stroke in dynamic use
|
|
S
|
24.571
|
mm
|
pitch of spring
|
|
n
|
3.5
|
pc.
|
number of active coils
|
|
nt
|
-
|
pc.
|
total number of coils
|
|
R
|
99.981
|
N/mm
|
Spring rate
|
|
Weight
|
675.8082
|
g
|
weight of one spring
|
|
Fntol
|
252
|
N
|
(+/-) tolerance of maximum force in static use
|
|
Fndtol
|
247
|
N
|
(+/-) tolerance of maximum dynamic force
|
|
Detol
|
0.8
|
mm
|
(+/-) tolerances of outer Coil diameter
|
|
L Otol
|
1.64
|
mm
|
(+/-) tolerance of unstressed spring length
|
|
Price group
|
AS
|
-
|
price group
|
|
F1tol
|
-
|
N
|
(+/-) tolerance of prestressed spring force
|
|
F2tol
|
-
|
N
|
(+/-) tolerance of loaded spring force
|
