韩国DRASTAR调压阀，DRA100-A250S-LPO-4FS-G1S，DRA100-A025S-LPO-4FS-G1S
| Products Feature |

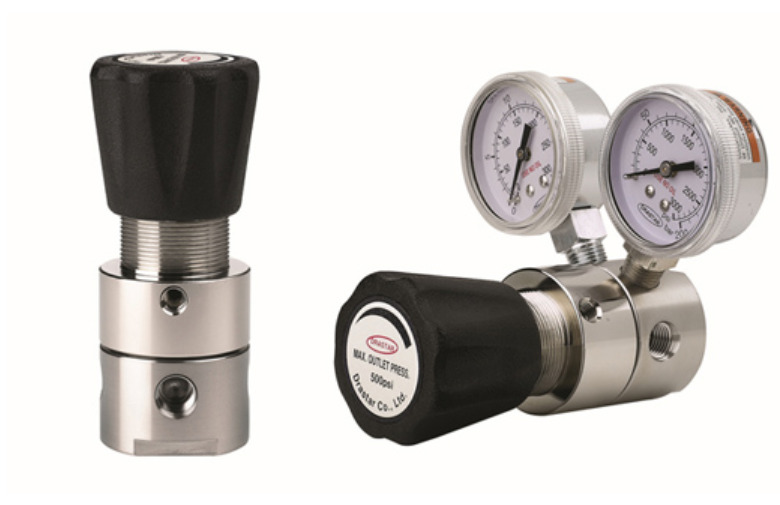

UHP VCR type Pressure Reducing Regulators
DRA100 Series is an UHP low pressure reducing regulator with B.A. 25Ra, E.P. 10Ra, or E.P. 5Ra surface finish and applicable for high purity semiconductor manufacturing, specialty gas, and bulk gas lines as well as other facilities. Inlet pressures are 3000psig (210bar) or 600psig (42bar) and outlet pressure are 5psig(0.3bar) up to 250psig (17bar).
★ 1/4”, 3/8”, 1/2”, and 3/4” VCR type
★ Non-tied diaphragm type
★ Surfaces finishes to B.A. 25Ra, E.P. 10 Ra or E.P. 5 Ra microinch
★ Push and lock type handle (DRASTAR patent #10-1086199) mounted
★ Threadless type: enhanced particle prevention by adopting the locking-plate seal system (DRASTAR patent #10-0753280)
★ All works of welding, assembly, test and cleaning are performed in class 100 and class 10 clean-rooms
★ Design proof pressure: 150% of maximum rated
★ Applicable for Semiconductor manufacturing, specialty gases, bulk gas line and other facilities
With DRASTAR’s patented (patent #1086199) “push and lock type handle”, you can operate it easily and stably; “locking” by pushing down the handle will prevent any slight change of pre-set pressure value, which could possibly be caused by any vibration from gas pipeline or ambient applications and the other way “unlocking” by pulling it back enables you to adjust the pressure value freely again. |
| Ordering Information. |
| DRA100-A025S-H |
| BASISSERIESNUMBERBODY MATERIAL &SURFACE FINISHOUTLETPRESSURERANGEDIAPHRAGMMATERIALMAX.INLETPRESSUREDRA100A = 316L B.A -------------- 25RaB = 316L E.P -------------- 10RaC = 316L E.P(P.E.P) ------- 5RaD = 316L VAR E.P ---------- 10RaE = 316L VAR E.P(P.E.P)---- 5Ra 025 = 1-25psi (.1-1.7bar) 050 = 1-50psi (.1-3.5bar) 100 = 1-100psi (.1-7bar) 250 = 1-250psi (.2-17bar) S = STS 316LH = Hastelloy-CH = 3000psi(210bar)L = 600psi(42bar) |
| PS-4MS-G0S |
| SEATMATERIALFLOWCAPACITYINLETOUTLETPORTS SIZE Type "A" ± 1.0mmGAUGEPORTSOPTIONS Gauge PortsP = PCTFET = TeflonV = VespelS = Cv 0.06 1/4" StandardO = Cv 0.2 1/4" OptionalS = Cv 0.2 3/8" StandardS = Cv 0.5 1/2" StandardO = Cv 1.0 1/2" OptionalS = Cv 1.2 3/4" Standard4HP = 1/4" H.P.I.C4MS = 1/4" Male Swivel ---- 94mm4FS = 1/4" Female Swivel -- 94mm4FL = 1/4" Female Swivel -- 114mm4ML = 1/4" Male Swivel ---- 114mm8MS = 3/8" Male Swivel ---- 120mm8FS = 3/8" Female Swivel -- 120mm2MS = 1/2" Male Swivel ---- 140mm2FS = 1/2" Female Swivel -- 140mm2ML = 1/2" Male Swivel ---- 180mm2FL = 1/2" Female Swivel -- 180mm2FSS/2MSS=1/2" F. Male Sw.122mm3MS = 3/4" Male Swivel ---- 160mm3FS = 3/4" Female Swivel -- 160mm4IMF = In 1/4" Male Out 1/4" Female ----- 94mm4IFM = In 1/4" Female Out 1/4" Male ------- 94mm2IMF = In 1/2" Male Out 1/2" Female ----- 140mm2IFM = In 1/2" Female Out 1/2" Male ------- 140mm2IMFL = In 1/2" Male Out 1/2" Female ----- 180mm2IFML = In 1/2" Female Out 1/2" Male ------- 180mm4TS = 1/4" Tube Stubs ---- 94mm8TS = 3/8" Tube Stubs ---- 94mm2TS = 1/2" Tube Stubs ---- 120mmG0S = None ------------- 0G1S = 1/4" H.P.I.C ------- 1G2S = 1/4" H.P.I.C ------- 2G2B = 1/4" H.P.I.C ------- 2M1S = 1/4" Male Swivel -- 1M2S = 1/4" Male Swivel -- 2M2B = 1/4" Male Swivel -- 2F1S = 1/4" Femle Swivel -- 1F2S = 1/4" Femle Swivel -- 2F2B = 1/4" Femle Swivel -- 2 |
| Specification |
| Ports DRA100-A100S-xxx-4MS-GxS 1/4" Male DRA100-A100S-xxx-4FS-GxS 1/4" Female DRA100-A100S-xxx-8MS-GxS 3/8" Male DRA100-A100S-xxx-8FS-GxS 3/8" Female DRA100-A100S-xxx-2MS-GxS 1/2" Male DRA100-A100S-xxx-2FS-GxS 1/2" Female DRA100-A100S-xxx-3MS-GxS 3/4" Male DRA100-A100S-xxx-3FS-GxS 3/4" Female Design Pressure 150% maximum rated Leak Rate Certification to 1 x 10-9 atm cc/sec Helium available. Body Materials DRA100-A100x-xxx-xxS-GxS 316L B.A ------------------ 25Ra DRA100-B100x-xxx-xxS-GxS 316L E.P ------------------ 10Ra DRA100-C100x-xxx-xxS-GxS 316L E.P(P.E.P) ------------5Ra DRA100-D100x-xxx-xxS-GxS 316L VAR E.P ---------------10Ra DRA100-E100x-xxx-xxS-GxS 316L VAR(P.E.P) ------------ 5Ra Bonnet Material Nickel Plated Brass (Stainless steel 316L Optional) Diaphragm DRA100-x100S-xxx-xxS-GxS STS 316L DRA100-x100H-xxx-xxS-GxS Hastelloy-C22 Main Valve DRA100-A100S-xxx-xxS-GxS Stainless steel 316L Standard DRA100-B100H-xxx-xxS-GxS Hastelloy-C22 Optional Valve Spring DRA100-A100S-xxx-xxS-GxS Stainless steel 316L Standard DRA100-B100H-xxx-xxS-GxS Hastelloy-C22 Optional Valve Seat DRA100-B100S-xPx-xxS-GxS PCTFE DRA100-B100S-xTx-xxS-GxS Teflon DRA100-B100S-xVx-xxS-GxS Vespel Inlet Pressure Ranges DRA100-A100S-Hxx-xxS-GxS 3000psi(210bar) DRA100-A100S-Lxx-xxS-GxS 600psi(42bar) Outlet Pressure Ranges DRA100-x025x-xxS-xMS-GxS 25psi(1.7bar) DRA100-x050x-xxS-xMS-GxS 50psi(3.4bar) DRA100-x100x-xxS-xMS-GxS 100psi(7bar) DRA100-x250x-xxS-xMS-GxS 250psi(17bar) Operating Temperature PCTFE -40°C ~ +60°C (-40°F ~ +140°F) Teflon -40°C ~ +70°C (-40°F ~ +165°F) Vespel -40°C ~ +170°C (-40°F ~ +350°F) Flow Capacity DRA100-x100x-xxS-4MS-GxS 1/4" Cv=0.06 DRA100-x100x-xxO-4MS-GxS 1/4" Cv=0.2 DRA100-x100x-xxS-8MS-GxS 3/8" Cv=0.2 DRA100-x100x-xxS-2MS-GxS 1/2" Cv=0.5 DRA100-x100x-xxO-2MS-GxS 1/2" Cv=1.2 DRA100-x100x-xxS-3MS-GxS 3/4" Cv=1.2 |
| |
| |
| Recommendations |
|
Each product is manufactured taking into consideration of the best safety and easy manipulation. However in order to use the regulator in most safe, effective, precise and smooth way and prolong its life time, you are recommended to use the actual pressure within the range of 25% ~ 75% of its rated pressure.
|
| |
